Below are the various thicknesses of HRPO Sheets:

• 1.0mm
• 1.2mm
• 1.6mm
• 2.0mm
• 2.3mm
• 2.5mm
• 2.6mm
• 3.0mm
• 3.15mm

Grades available IS1079 D and SAPH440

Below are various thickness in CRCA Sheet

• 0.6mm
• 0.8mm
• 1.0mm
• 1.25mm
• 1.6mm
• 2.0mm
• 2.5mm
• 3.0mm
• 3.15mm

Grade available IS513 Gr D/DD/EDD All material available in Coil and Sheet form in 900/1000/1250/1500mm width.

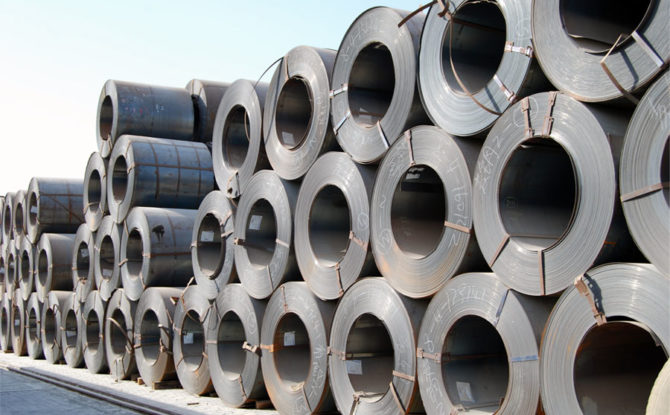

H.R Colils/Sheets
Thickness	Weight
mm	Kg/sq.m
1.6	12.55
1.8	14.15
2	15.7
2.25	17
2.3	18.05
2.5	19.6
2.8	22
2.9	22.75
3.15	24.75
3.8	27.9
4	31.4

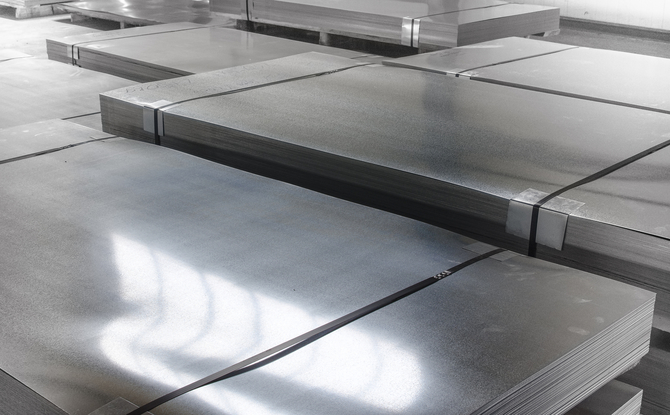

MS PLATES Thickness Weight mm Kg/sq.m 5 39.25 6 47.1 8 62.8 10 78.5 12 94.2 14 109.9 16 125.6 18 141.3 20 157 22 172.7 25 196.25 28 219.8 32 251.2 36 282.6 40 314 45 353.2 50 392.5 56 439.6 63 494.5 71 557.4 80 628

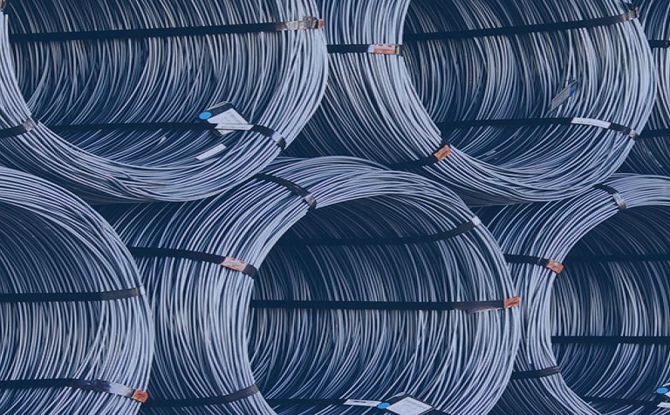

Various sizes of wire rods available are:

• 5.5 mm
• 6.0 mm
• 7.0 mm
• 8.0 mm
• 10.0 mm
• 12.0 mm
• 14.0 mm
• 16.0 mm

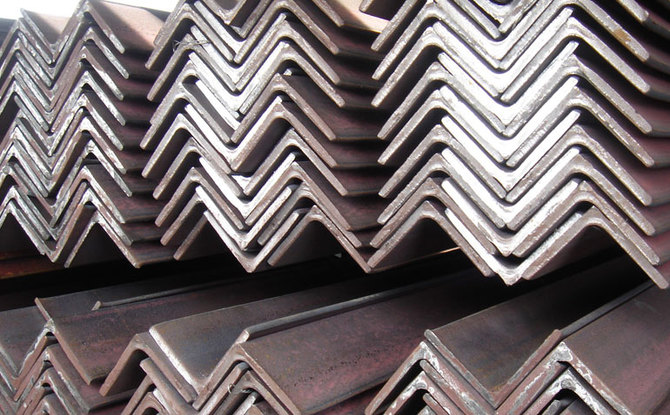

MS ANGLE
Size mm	4	8	10	12	16	20
50 x 50	4.5
65 x 65	5.8	7.7	9.4
75 x 75	6.8	8.9	11
90 x 90	8.2	10.8	13.4	15.8
100 x 100		12.1	14.9	17.7
110 x 110			16.5	19.6
130 x 130			19.7	23.4
150 x 150				27.2	35.7
200 x 200				35.6	48.5	60

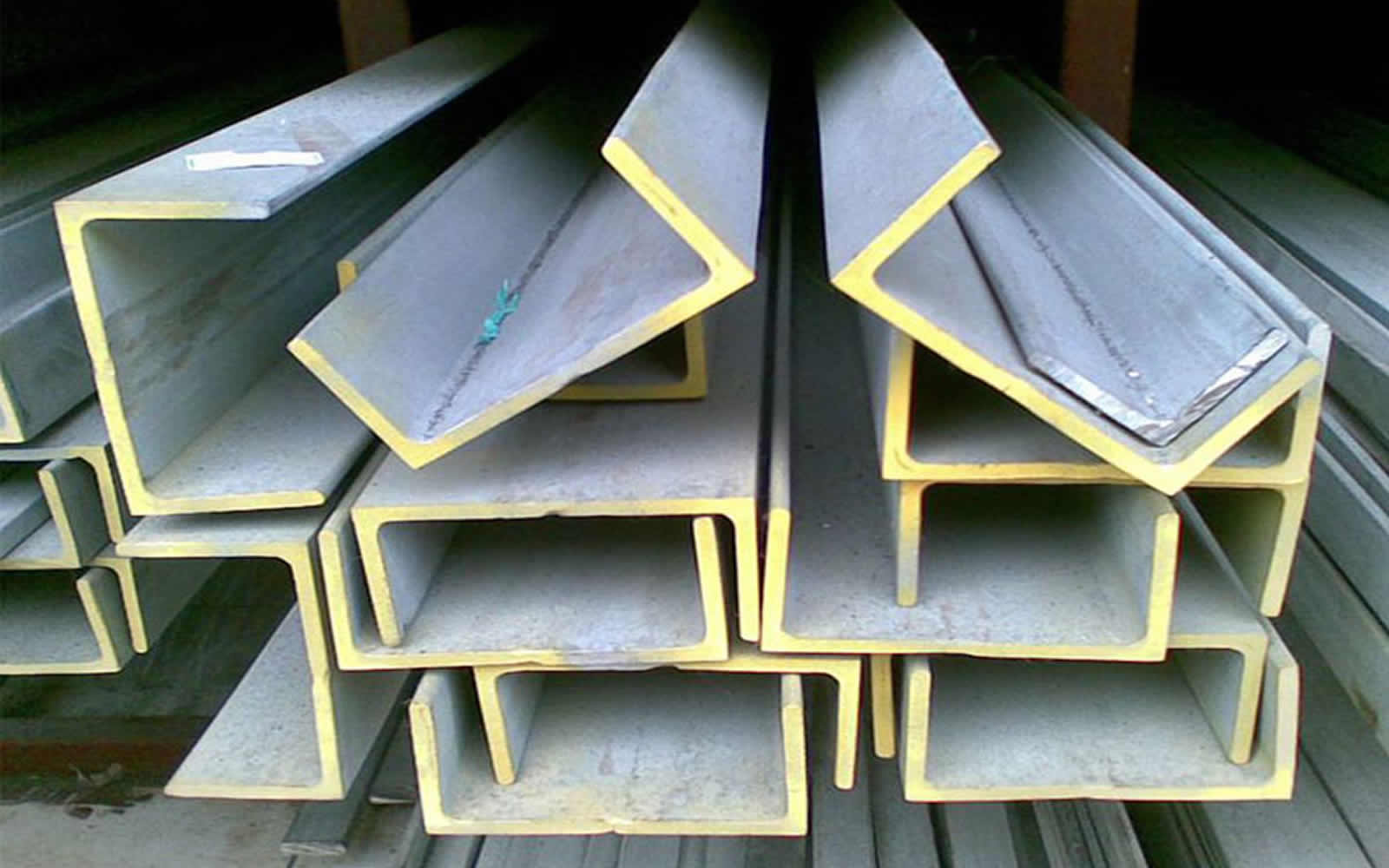

MS Channel
Size MM	Weight Kg/sq.m
75 x 40	7.1
100 x 50	9.6
125 x 65	13.7
150 x 75	16.8
175 x 75	19.6
200 x 75	22.3
250 x 82	34.2
300 x 90	36.3
400 x 100	50.1

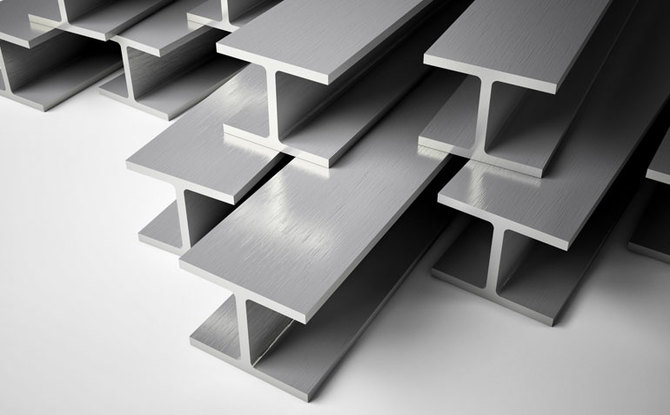

MS Beams PRODUCT DISCRIPTION KG/SQMTR NPB 100X55 8.1 NPB 120X60 10.37 NPB 140X70 12.89 NPB 160X80 15.77 NPB 180X90 15.37, 18.80, 21.27 NPB 200X100 18.42, 22.36, 25.09 NPB 200X130 27.37, 31.55 NPB 200X150 30.45 NPB 200X165 35.68, 42.47, 48 NPB 220X110 22.18, 26.20, 29.35 NPB 240X120 26.15, 30.71, 34.31 NPB 250X125 30.11 NPB 250X150 34.08, 39.78, 46.48 NPB 250X175 43.94 NPB 270X135 30.73, 42.26 NPB 300X150 36.52, 42.24, 49.32 NPB 300X165 39.88, 45.76, 53.46 NPB 300X200 59.56, 66.75, 75.37 NPB 330X160 49.15 NPB 350X170 57.09 NPB 350X250 79.18 NPB 400X180 57.38, 66.3, 75.66 NPB 400X200 67.28 NPB 450X190 67.15, 77.57, 92.36 NPB 500X200 79.36, 90.68, 107.31 NPB 550X210 105.52 NPB 600X220 107.56, 122.45, 154.46 NPB 750X270 145.29, 174.54, 202.48
